MUYI 50 Pairs DT Connector Terminals Kit, Size 16 Stamped Contacts Male Pins & Female Sockets Open Barrel Replacement Terminal for 18-14AWG

MUYI 50 Pairs DT Connector Terminals Kit, Size 16 Stamped Contacts Male Pins & Female Sockets Open Barrel Replacement Terminal for 18-14AWG

$13.99 USD
$13.99 USD
Sale Sold out

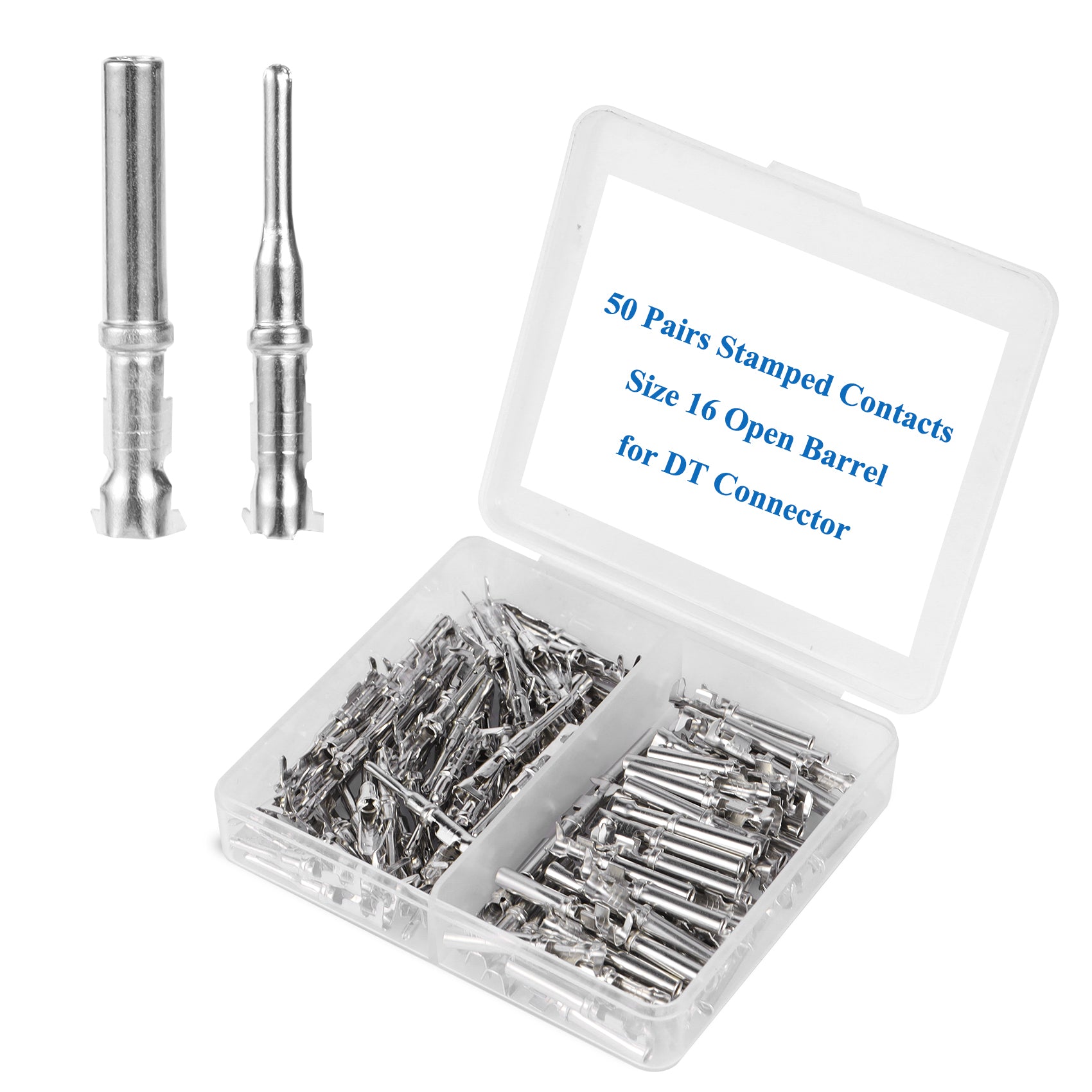

  • Packing list: 50 pairs open barrel terminal, stamped & formed style contacts [Male pins 50pcs, female sockets 50pcs], 1pcs plastic storage box.

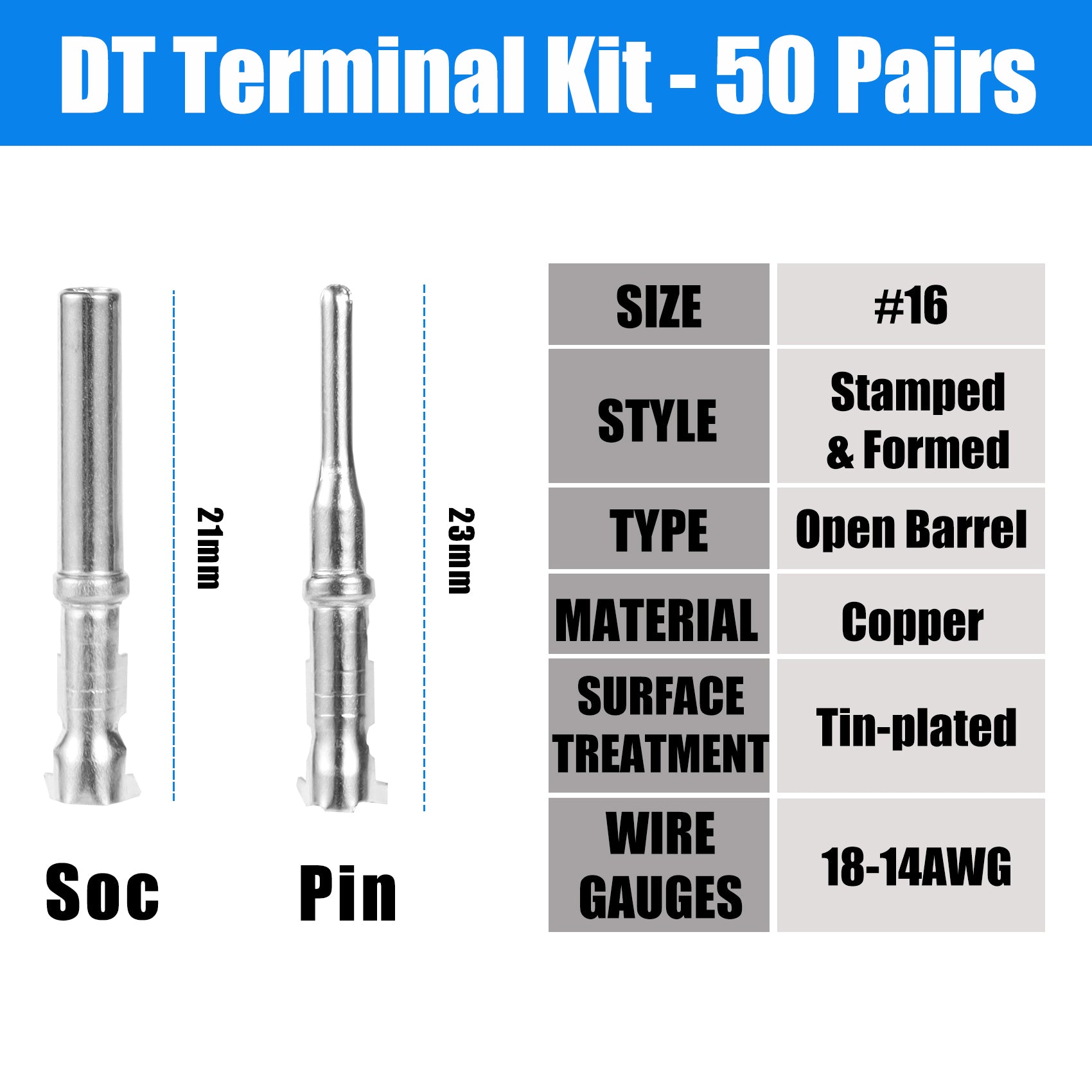

  • DT common contacts Size 16, F-Crimp, made by pure copper, suitable for wire range 18-14AWG/ 0.82-2.08mm ².
  • Performance: Socket, Pin Diameter 1.59 mm [.063 in]. Terminal Transmits 0 – 24 A (Low Power).
  • Contact retention: contacts withstand a minimum load of: 25lbs (111 N) for size 16. Max rated amps at 125degree continous is 13amps.
  • DT series connectors are by far the most popular connector used in many automotive, RV, car lighting, motorcycle electrical wiring.
