MUYI 5 Kits 8 Pin Way JST Waterproof Connector 26-22 AWG Electric Socket 0.13~0.33mm² Wire-to-Wire Connectors 2.0mm JWPF-VSLE Series JST Plugs

Name: MUYI 5 Kits 8 Pin Way JST Waterproof Connector 26-22 AWG Electric Socket 0.13~0.33mm² Wire-to-Wire Connectors 2.0mm JWPF-VSLE Series JST Plugs
Brand: MUYI Shop
SKU: 5xSKU21086#8
Price: 11.99 USD
Availability: InStock

$11.99 USD

Sale Sold out

Product variants

Quantity

jwpf 8 pin jst electrical connector low voltage automotive plugs

Package Details:

8 pin way male & female connector x 5 pairs
Male Pins x 40pcs
Female Pins x 40pcs

Specifications:

Pitch: 2.0 mm (0.079 inch)
Current Rating: 3-5A DC\AC
Voltage Rating: 100V DC\AC
Temperature Range: -55℃~+85℃
Applicable Wire: 24-20 AWG (0.2-0.5mm² )

2.0mm Series JST Wire-to-Wire Connector is widely used for circuit boards, Motorcycle, Scooter, Car, Truck, Quad bike, Trike, Caravan, Marine, Jet ski, Boats and other wire connections.

26-22 AWG(0.13~0.33mm² ) male & female JST Plug Connector.
Operating temperature: -55℃~+85℃; 100V DC/AC; MAX current: 3-5 A.

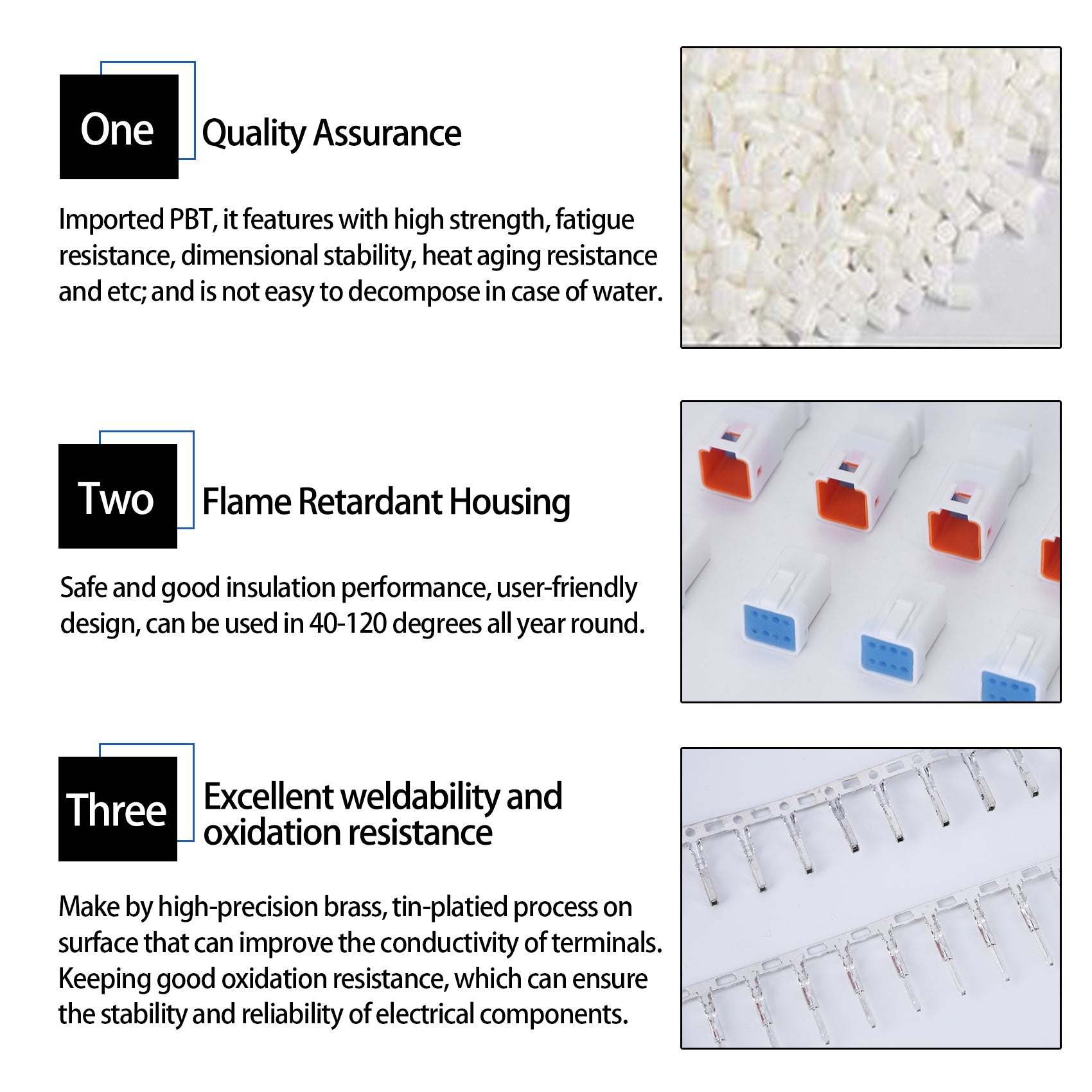

JST Connector is made of PBT UL94V-0 (polybutylene terephthalate), it has good stability, insulation and oxidation resistance. The copper-tinned pins can ensures stable electrical connections and conductivity.
2.0mm JWPF-VSLE Series JST Wire-to-Wire Connector is widely used for circuit boards, Motorcycle, Scooter, Car, Truck, Quad bike, Trike, Caravan, Marine, Jet ski, Boats and other wire connections.

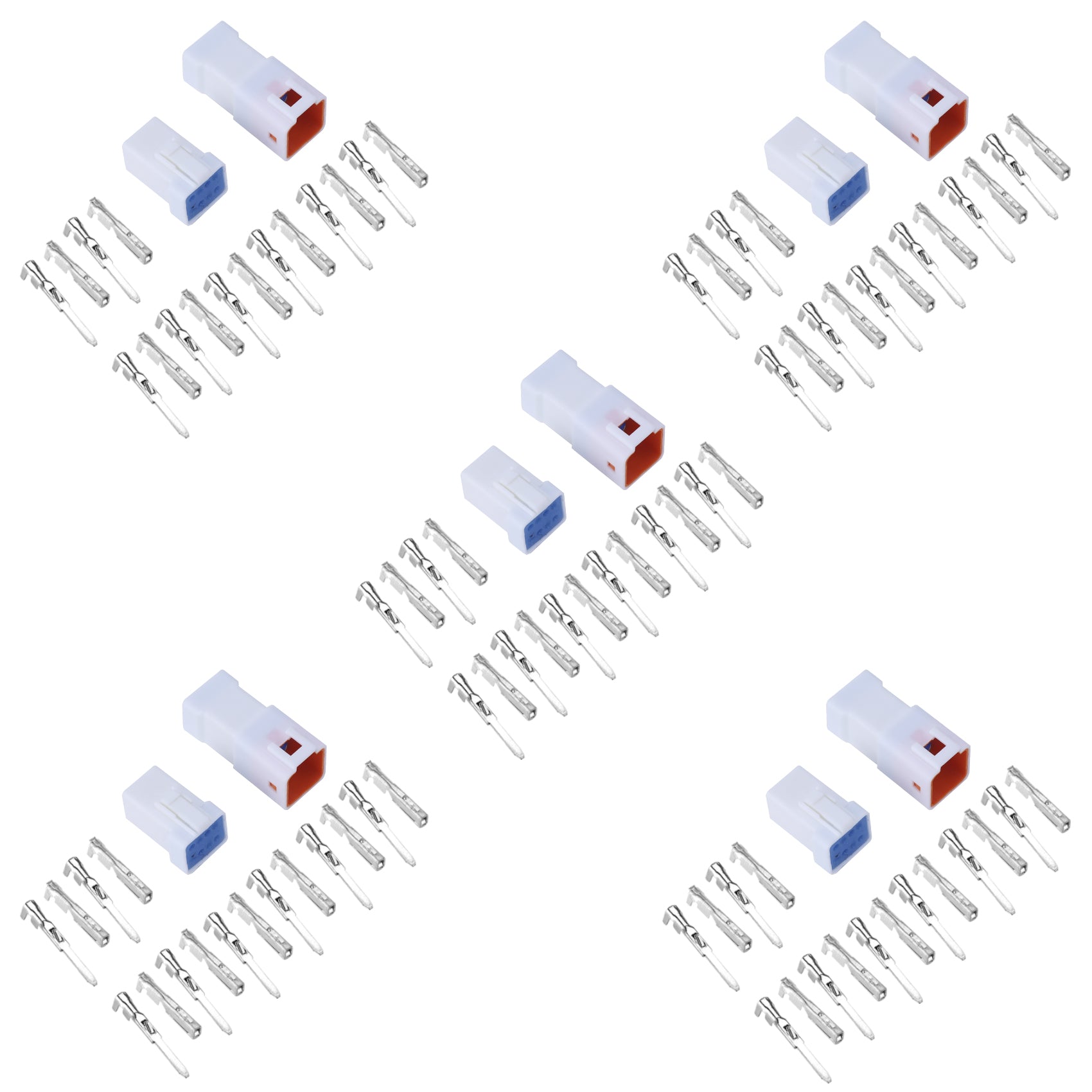

Package contains 5pcs 8 pin female connectors(08R-JWPF-VSLE-S)+ 5pcs 8 pin male connectors (08T-JWPF-VSLE-S) +40pcs female terminals +40pcs male terminals , total 90 pieces.
