MUYI 5 Kits 3 Pin Way JST Waterproof Connector 26-22 AWG Electric Socket 0.13~0.33mm² Wire-to-Wire Connectors 2.0mm JWPF-VSLE Series JST Plugs

MUYI 5 Kits 3 Pin Way JST Waterproof Connector 26-22 AWG Electric Socket 0.13~0.33mm² Wire-to-Wire Connectors 2.0mm JWPF-VSLE Series JST Plugs

$8.99 USD
$8.99 USD
Sale Sold out
JST CONNECTOR
jwpf connector 3 pin

Package Details:

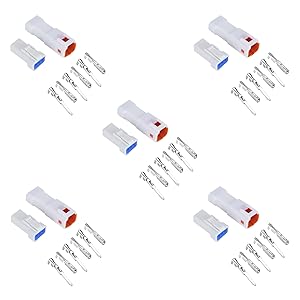

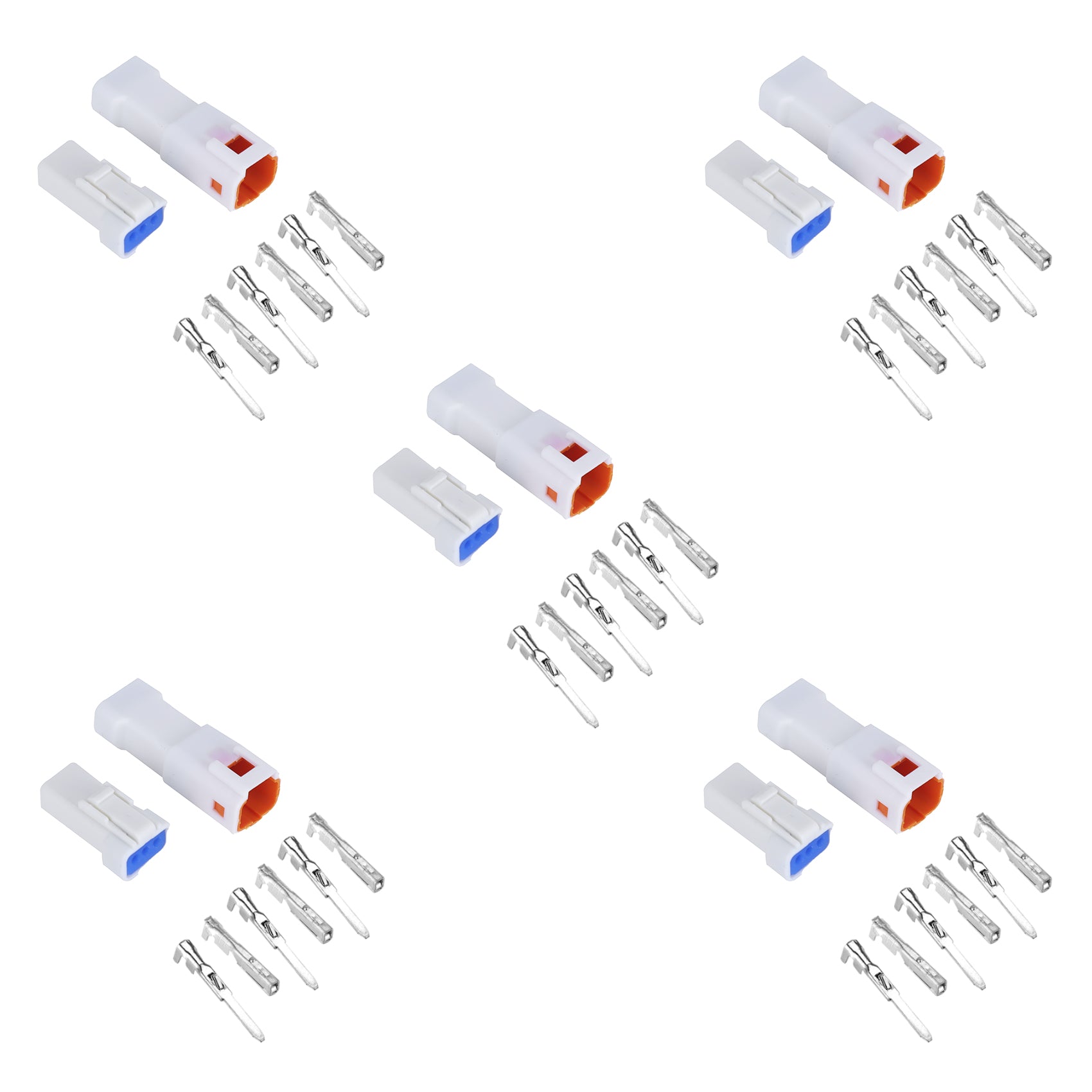

  • 3 pin way male & female connector x 5 pairs
  • Male Pins x 15pcs
  • Female Pins x 15pcs



Specifications:

  • Pitch: 2.0 mm (0.079 inch)
  • Current Rating: 3-5A DC\AC
  • Voltage Rating: 100V DC\AC
  • Temperature Range: -55℃~+85℃
  • Applicable Wire: 24-20 AWG (0.2-0.5mm² )

jst 3 pin way connector low voltage

2.0mm Series JST Wire-to-Wire Connector is widely used for circuit boards, Motorcycle, Scooter, Car, Truck, Quad bike, Trike, Caravan, Marine, Jet ski, Boats and other wire connections.


4

About this item

  • 26-22 AWG(0.13~0.33mm² ) male & female JST Plug Connector.
  • Operating temperature: -55℃~+85℃; 100V DC/AC; MAX current: 3-5 A.
  • JST Connector is made of PBT UL94V-0 (polybutylene terephthalate), it has good stability, insulation and oxidation resistance. The copper-tinned pins can ensures stable electrical connections and conductivity.
  • 2.0mm JWPF-VSLE Series JST Wire-to-Wire Connector is widely used for circuit boards, Motorcycle, Scooter, Car, Truck, Quad bike, Trike, Caravan, Marine, Jet ski, Boats and other wire connections.

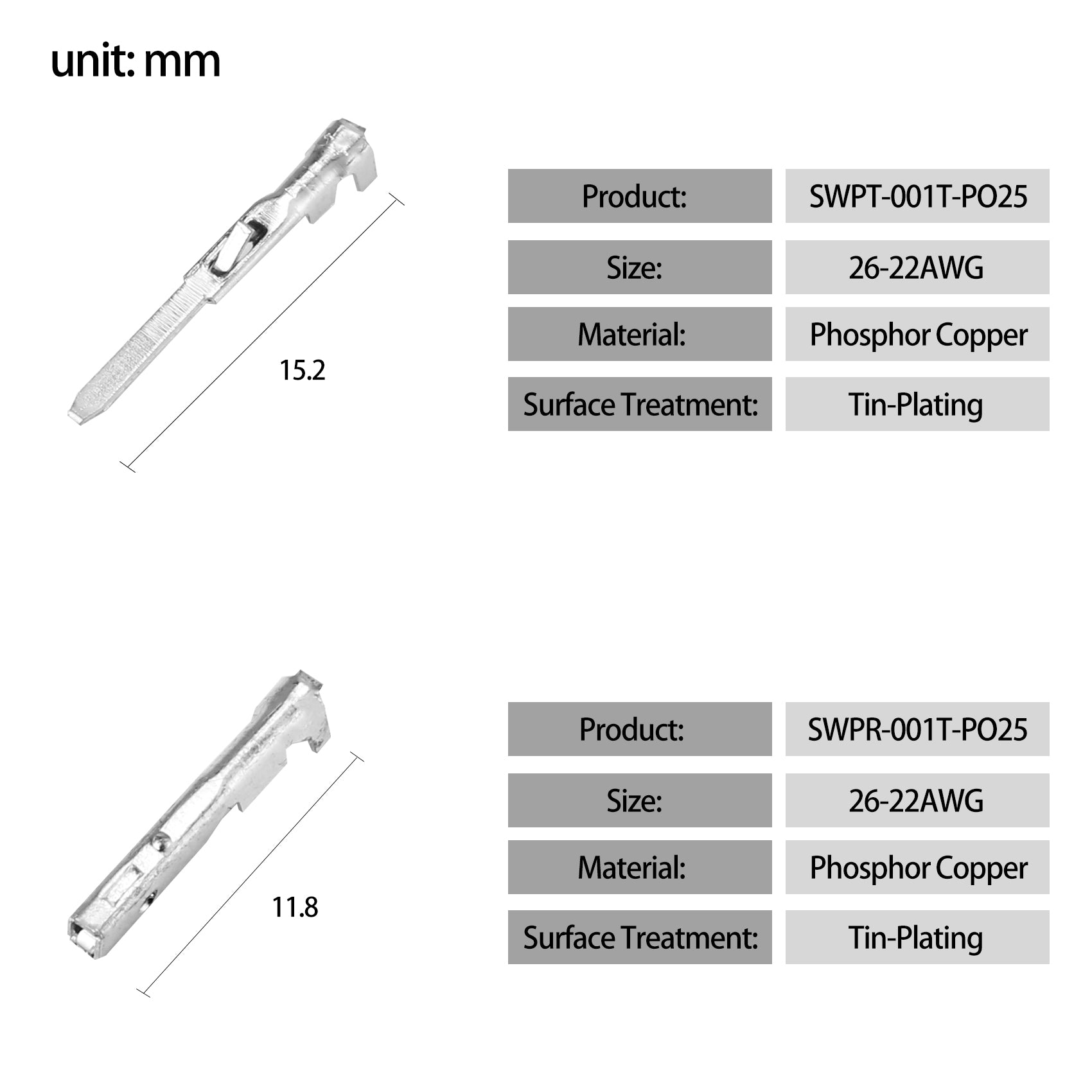

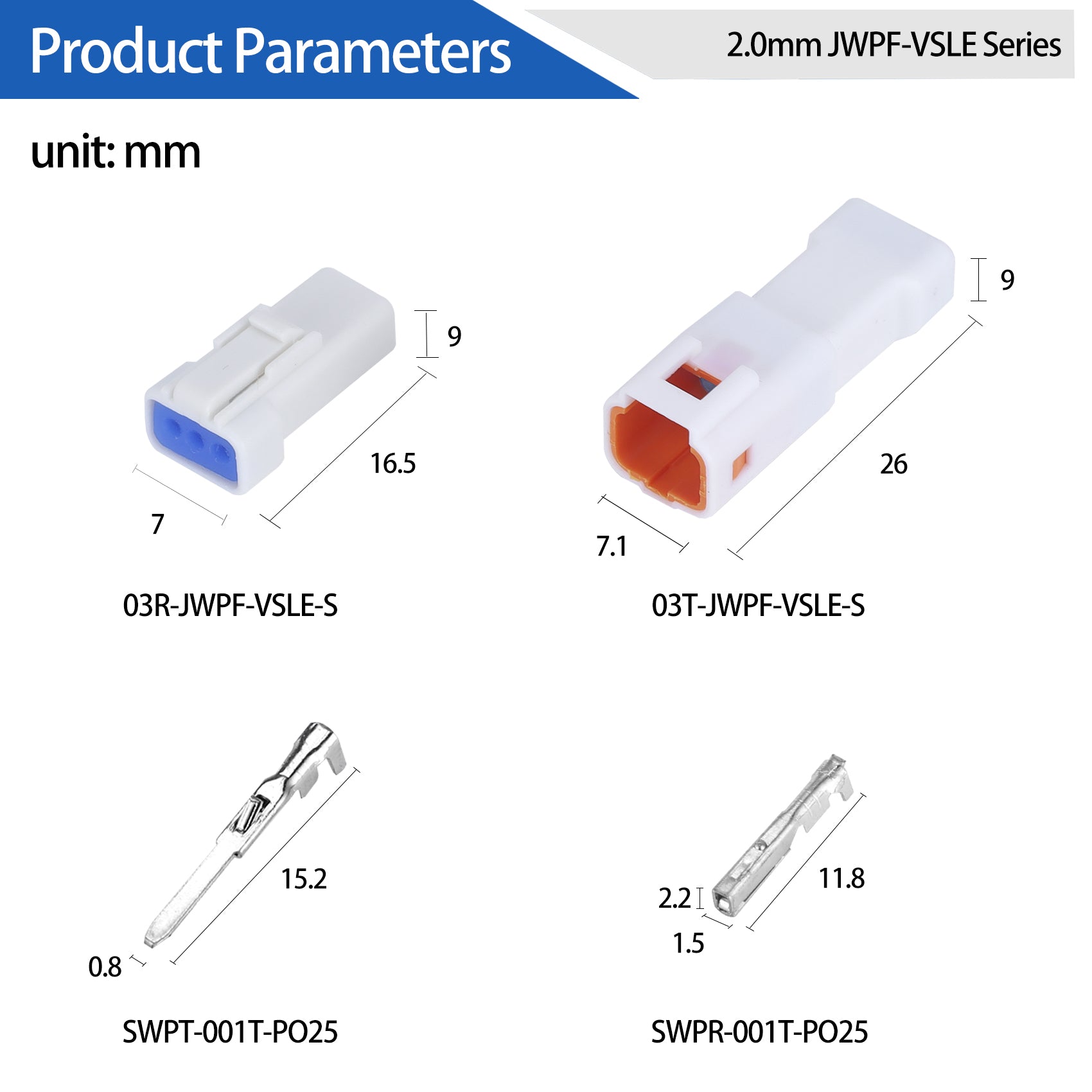

  • Package contains 5pcs 3 pin female connectors(03R-JWPF-VSLE-S)+ 5pcs 3 pin male connectors (03T-JWPF-VSLE-S) +15pcs female terminals +15pcs male terminals , total 40 pieces.
