MUYI DT Series Waterproof Connectors 2/3/4/6/8/12 Pin Connector 18-14 AWG Electrical Wire Plug with 13 Amps Continuous Terminals
MUYI DT Series Waterproof Connectors 2/3/4/6/8/12 Pin Connector 18-14 AWG Electrical Wire Plug with 13 Amps Continuous Terminals
MUYI DT SERIES CONNECTOR is made of PA66 nylon, this material has a certain thermostability, and make the plugs durable wear-resisting. Applied with the good quality rubber seal to make it better dustproof and waterproof. Optional in-line, flange, or PCB mount. It most use for marine, car, truck, boat, motorcycle, and other wire connections. DT electrical connectors will stand up to the harsh environmental challenges that are common to industrial markets that require advanced performance. Proper parts, procedures, and tooling must be used.
Product Cavity

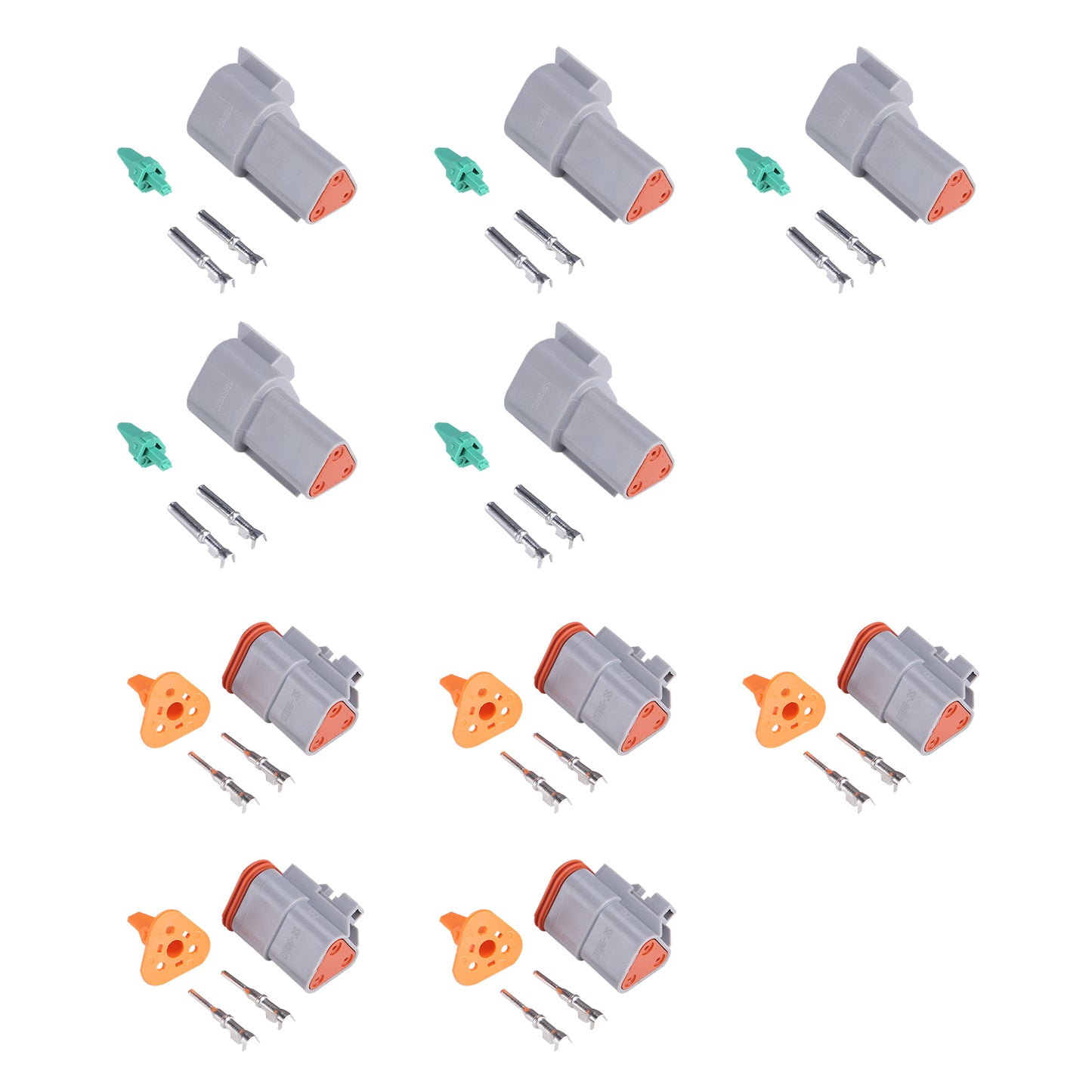

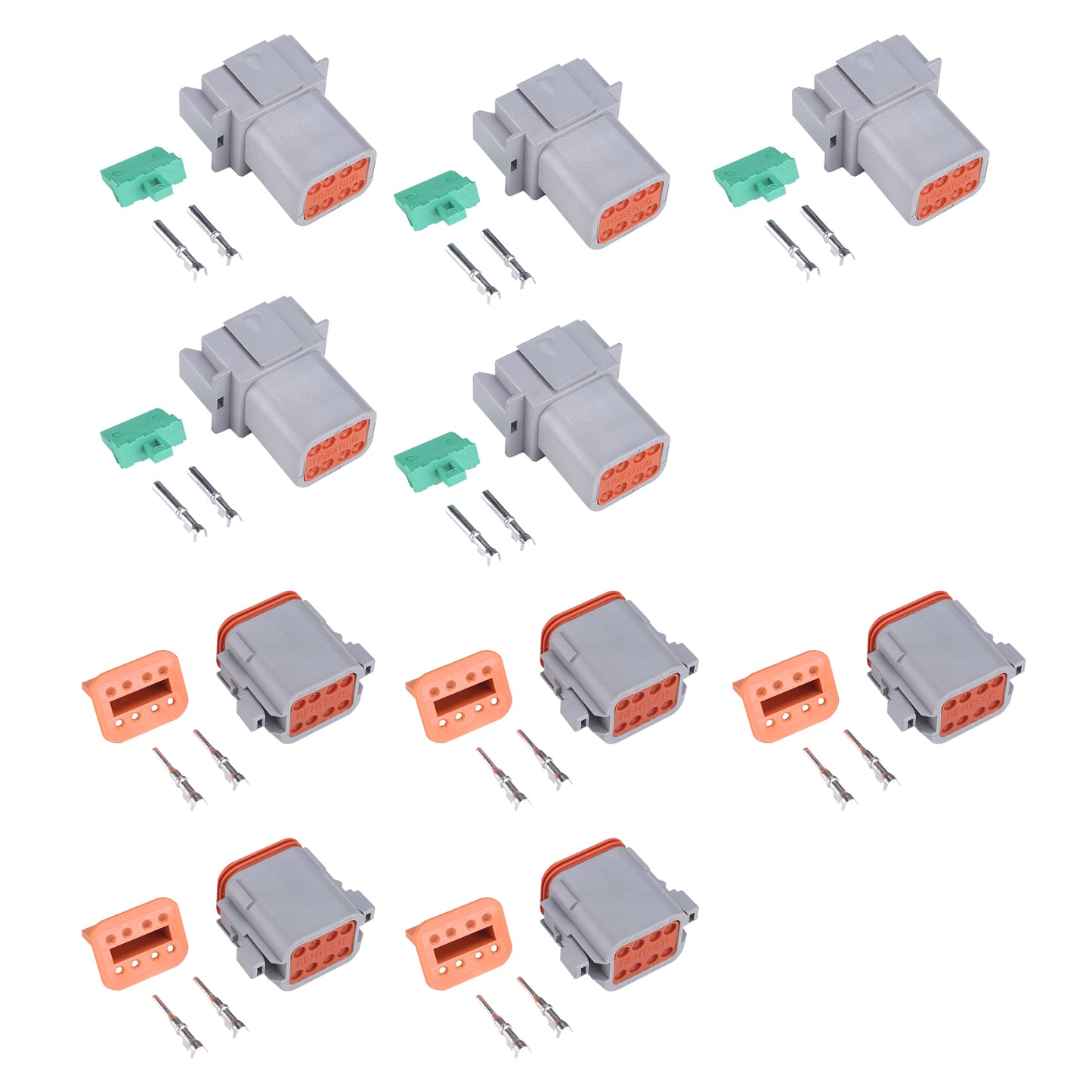

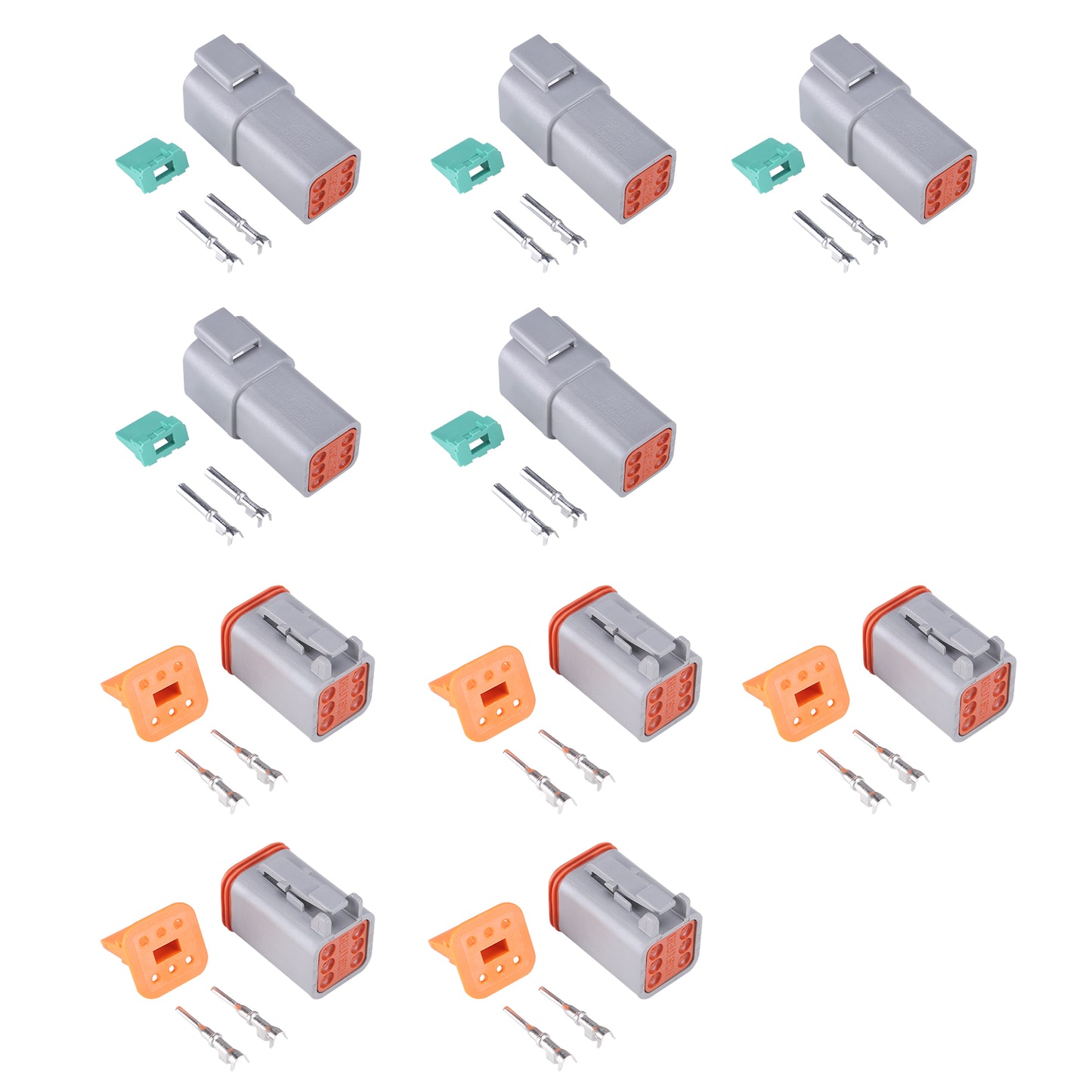

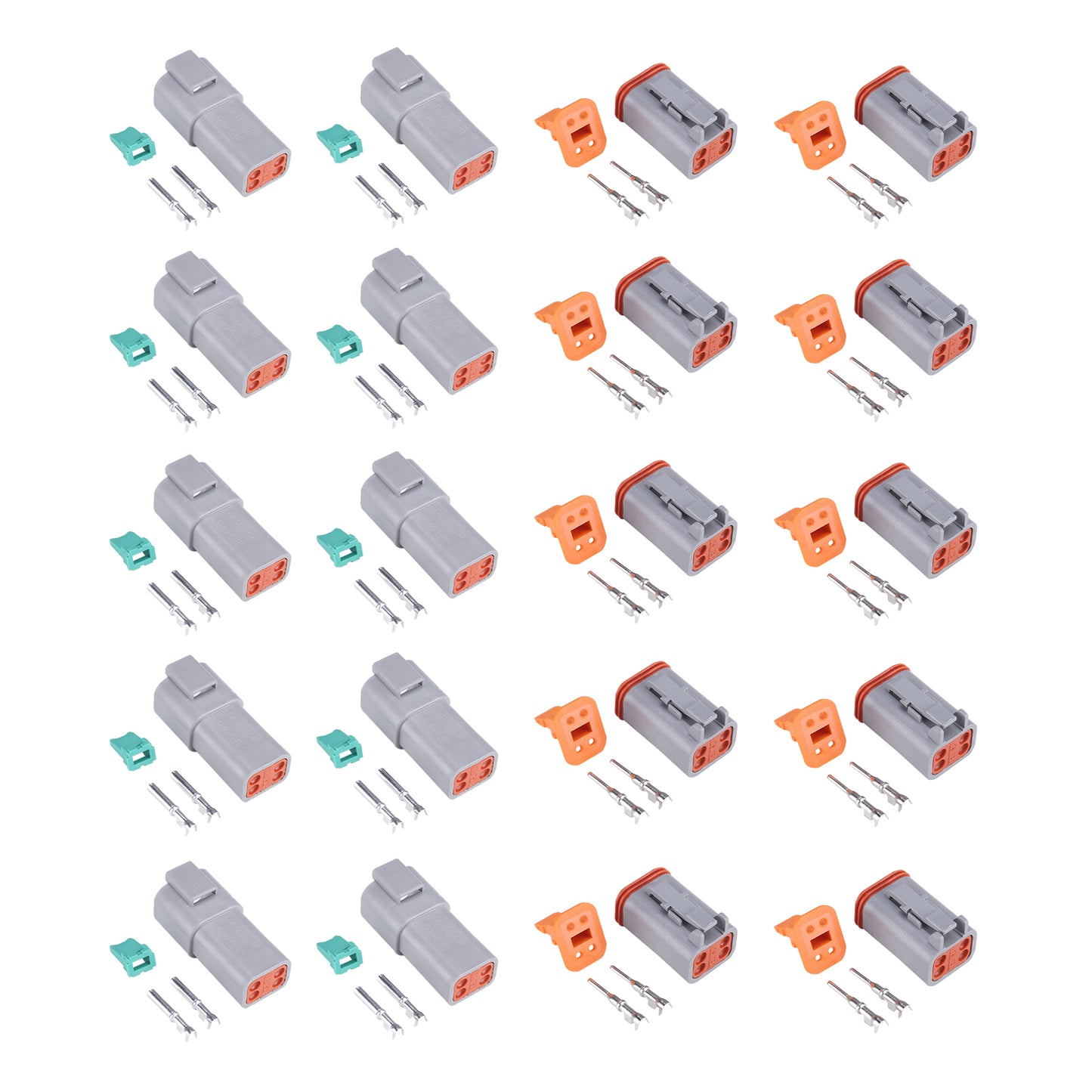

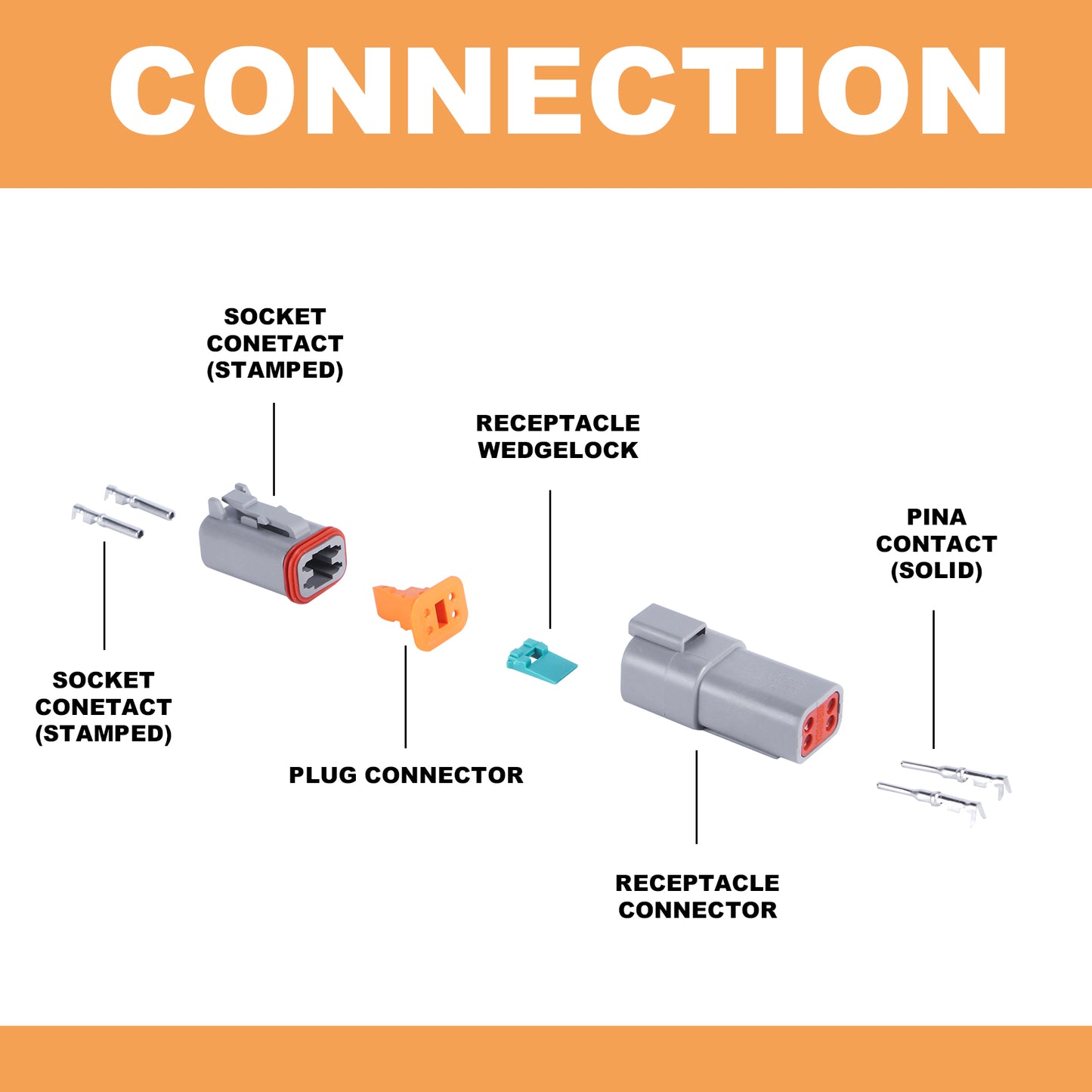

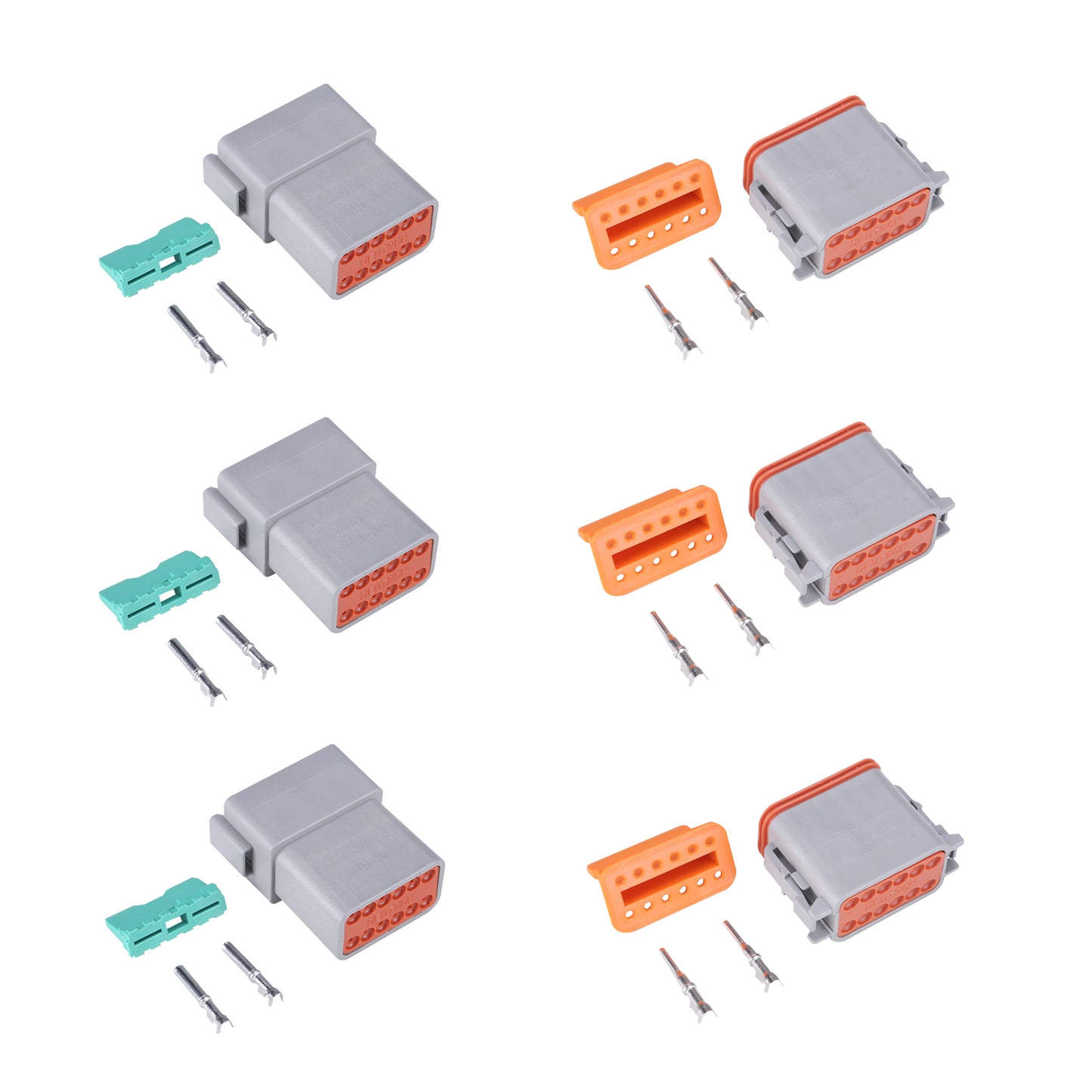

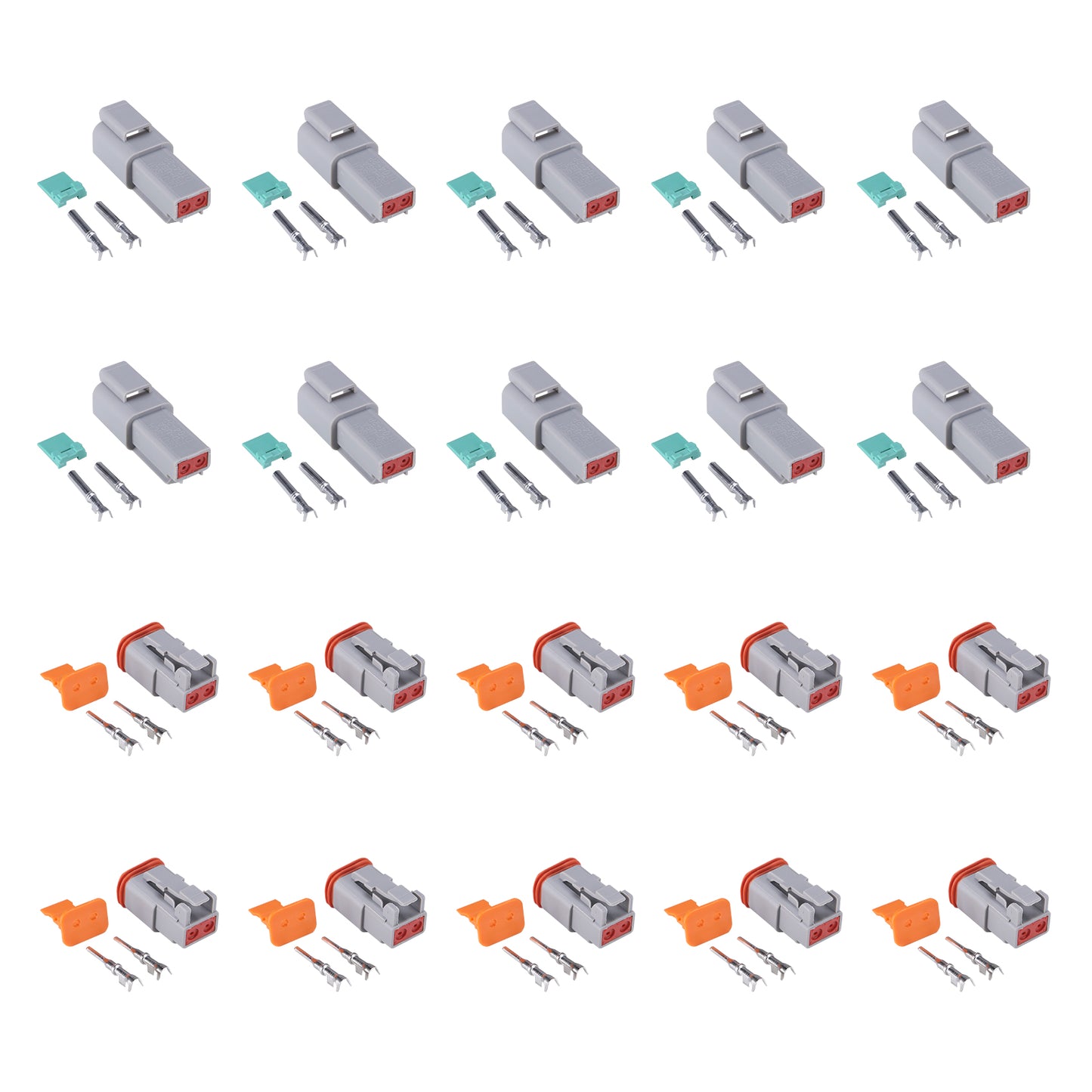

MUYI DT Series connector features 2, 3, 4, 6, 8, and 12 cavity arrangements. Each package comes with Male Housing, Female Housing, Orange Wedgelock, Green Wedgelock, Male Contact, Female Contact and Installation instruction.
Product Specific
- Series: DT Series, IP Rating: IP67;
- Shape: Rectangular, Color: Grey;
- Operating Temperature: 14°F (-10°C) to +176°F (+80°C);
- Wire Gauge: 22-14 AWG, Insulation: .088"-.145";

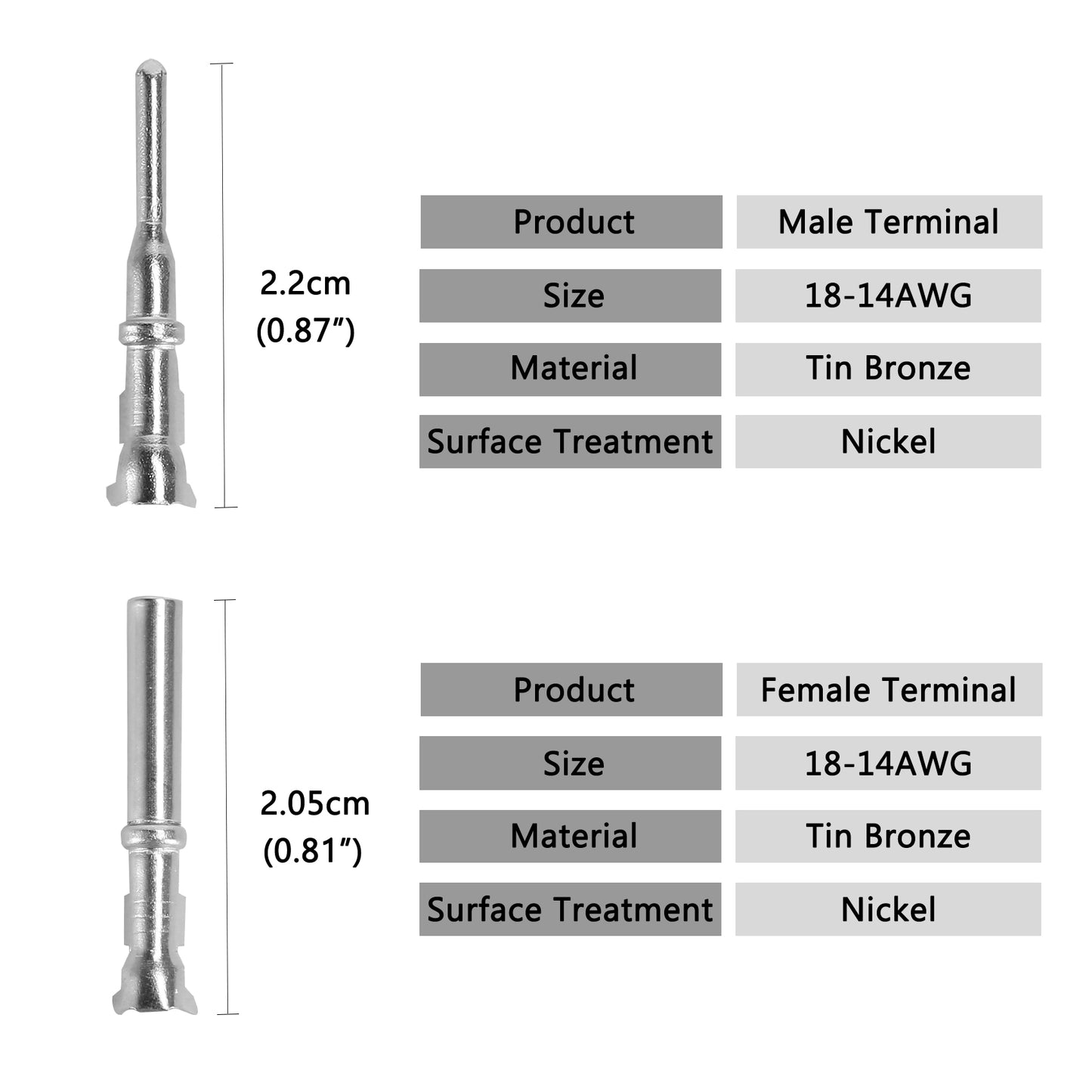

- Contact Size: 16, Current Rating: 13 Amps Continuous
Covenient and Quick
- Temperature - Operating at temperatures from -10° C to +80° C continuous at rated current.
- Durability - No electrical or mechanical defects after 100 cycles of engagement and disengagement.
- Insulation Resistance - 1000 megohms minimum at 25° C.
- Moisture Resistance - Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
- Dielectric Withstanding Voltage - Current leakage less than 2 milliamps at 1500v AC.
Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the connector. It can also be easily removed when need.
