MUYI 2Pcs 175A 2-4 AWG Battery Quick Disconnect/Connect Wire Connectors 12-36V AC/DC Towing Winch Quick Connect Systems Wire Harness Plug for Recovery Winch Auto Car Trailer Driver Electrical Devices

MUYI 2Pcs 175A 2-4 AWG Battery Quick Disconnect/Connect Wire Connectors 12-36V AC/DC Towing Winch Quick Connect Systems Wire Harness Plug for Recovery Winch Auto Car Trailer Driver Electrical Devices

Regular price $12.99 USD
Regular price $25.99 USD Sale price $12.99 USD
Sale Sold out

About the item:

  • Fits 2-4 Gauge wire; Capacity: 175A; Voltage: 12~36V, with standing max voltage: 600V.
  • Made of sturdy polycarbonate with fitted rubber boot covers; allows for quick power connection /disconnection from winches, trailers, tourism bus, electric forklift and other electrical devices.
  • Easy to install. Insert the wires into the terminal pins, then solder or crimp them. Connector ends are identical, so either end is suitable for connection to the power or load side.
  • Connector dimension(LxWxH): 3.11" x 2.11" x 1" ; Connected set dimension(LxWxH): 5.22" x 2.11" x 1".

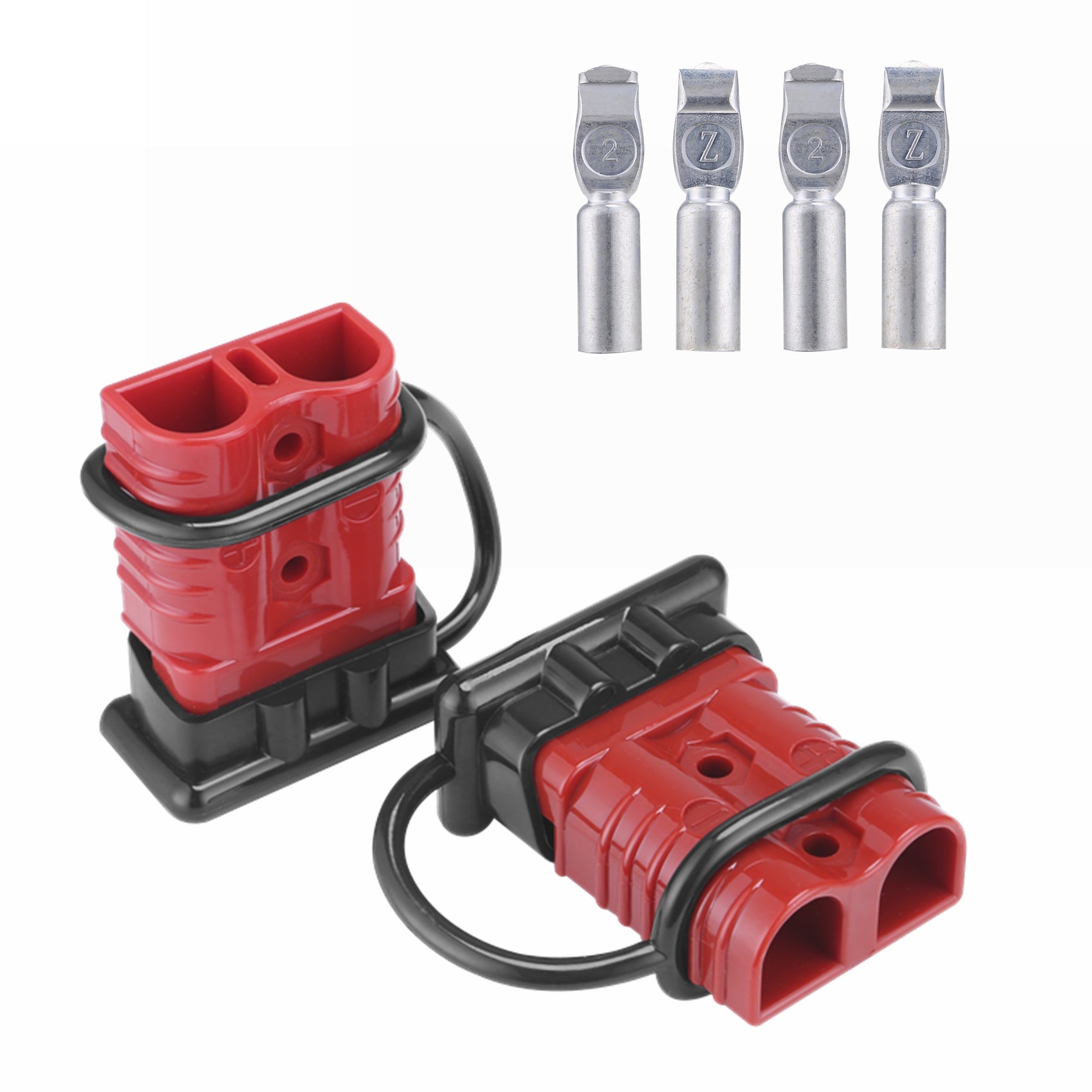

  • Package include: 2x Polycarbonate cover, 2x Hard rubber boot caps, 4x terminal pins.
0

MUYI 175A 2-4 AWG Battery Cable Quick Connect/Disconnect Wire Harness Plug Connector provides simple and convenient method for connect/disconnect power to a winch or other electrical device, such as remote battery chargers, power inverters, solar setups,trailers, or for any purpose requiring a high-current, quick-disconnect connector.

1
  • Current rating: 175A, Max rated voltage: 600V
  • Medium Withstanding Voltage: 2200DC
  • Operating Temperature Range:-4°F-221°F / -20°C-105°C
  • Vibration Resistance: Excellent
  • Impact Resistance: High



 4

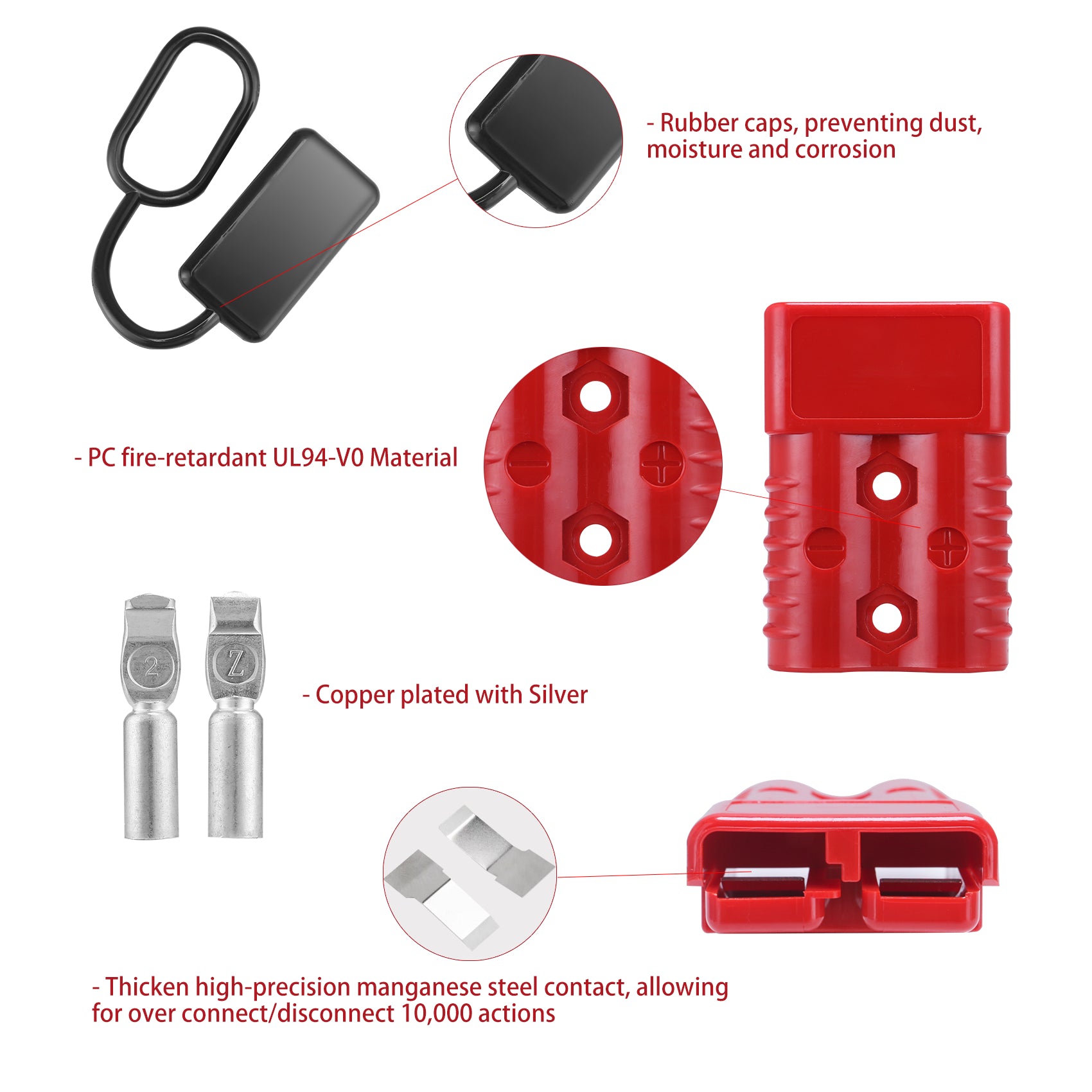

  • The shell is made of Class A high impact plastic UL94V-0 material, which is corrosion resistant and high temperature resistant and can be used in harsh environments.
  • The contact shrapnel is using imported stainless steel, which has strong durability and can be inserted and removed more than 10,000 times.
  • Connector dimension(LxWxH): 3.11" x 2.11" x 1" ; Connected set dimension(LxWxH): 5.22" x 2.11" x 1".
  • These plug is not divided into male and female and is easy to assemble. Plugging in and disconnecting is easy and fast3
  • Terminal(pins) dimension: Work for ( 21.2-33.6 mm² ) 2-4 gauge wire
  • Copper coated with Silver
  • Copper silver plated terminals help to achieve minimal contact resistance at high currents and excellent conductivity for different wire diameters




2
  • Rubber caps, preventing dust, moisture and corrosion
